Understanding UEFI: How It Works and Its Internals
The Unified Extensible Firmware Interface (UEFI) is a modern firmware interface between a computer's operating system and its hardware. Designed to overcome the limitations of the older BIOS (Basic Input/Output System), UEFI offers enhanced functionality, improved performance, and better security. Here’s a comprehensive look at how UEFI works and its internals.
Overview of UEFI
UEFI is a specification, not a piece of software itself. It defines a standard interface for firmware developers and operating system developers. Firmware implementing the UEFI specification initializes hardware and provides services for the operating system. The key features of UEFI include:
Graphical User Interface (GUI) for easier configuration.
Secure Boot to prevent unauthorized code execution.
Faster Boot Times due to better hardware initialization.
Support for large storage drives with GPT (GUID Partition Table).
Driver Independence as drivers can be included within the firmware.
How UEFI Works
UEFI firmware operates in a structured manner, encompassing several stages:
1. Platform Initialization (PI)
UEFI starts with a pre-initialization phase when the system powers on. This phase initializes the hardware in a minimal state sufficient to begin UEFI operations.
The SEC (Security Phase) is the first step, initializing critical components like CPU registers and temporary memory.
The PEI (Pre-EFI Initialization) phase configures permanent memory (like RAM) and basic hardware interfaces.
2. Driver Execution Environment (DXE)
UEFI transitions to the DXE phase, which is the heart of the UEFI firmware.
The DXE phase loads and executes driver binaries in a modular manner. These drivers are responsible for initializing additional hardware devices, such as storage controllers and network interfaces.
3. Boot Device Selection (BDS)
Once hardware initialization is complete, the firmware enters the BDS phase, where it identifies the bootable devices, such as hard drives, SSDs, or network boot options.
Boot options are stored in non-volatile memory as UEFI boot entries.
4. Transient System Load (TSL)
The TSL phase hands over control from the firmware to the operating system. This involves loading the bootloader, such as GRUB or Windows Boot Manager, into memory.
At this stage, UEFI may pass hardware details and system configuration through a standard structure called the ACPI table.
5. Runtime Services
After the operating system is loaded, UEFI firmware remains accessible through runtime services, allowing the OS to interact with the firmware for tasks like retrieving time, controlling power states, or interfacing with non-volatile storage.
Key Components of UEFI Internals
1. EFI System Partition (ESP)
UEFI uses a special partition on the storage device called the EFI System Partition (ESP). It stores:
UEFI applications (e.g., bootloaders).
Firmware updates.
Diagnostic tools.
2. EFI Shell
A command-line interface within UEFI, the EFI Shell provides a powerful environment for debugging, scripting, and manually managing boot options.
3. Protocols
UEFI communicates with devices and drivers using protocols, which are modular, abstract interfaces. For example:
Simple File Protocol: For file system access.
Graphics Output Protocol (GOP): For graphical output.
Block I/O Protocol: For accessing storage devices.
4. Secure Boot

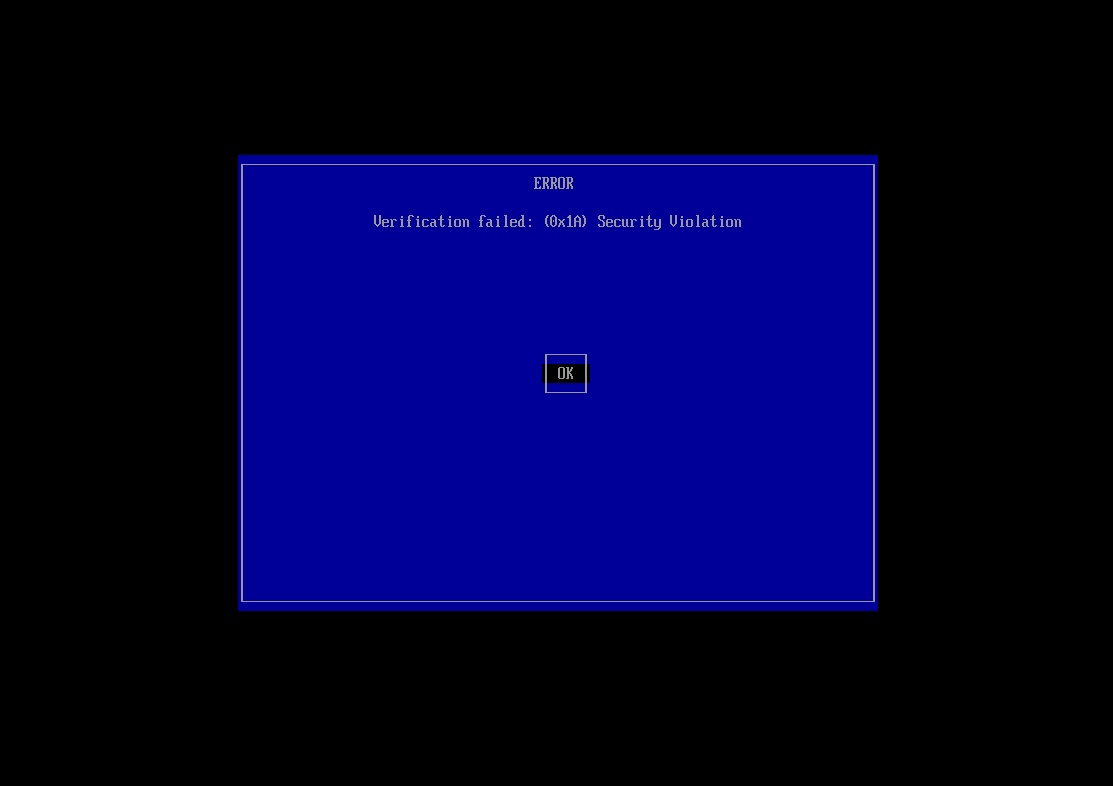

A major security feature, Secure Boot ensures that only signed and trusted software can run during the boot process. This prevents rootkits and malware from compromising the system before the OS loads.
5. GUID Partition Table (GPT)
UEFI works seamlessly with GPT, which supports drives larger than 2 TB and provides better redundancy and recovery options compared to the older MBR (Master Boot Record) system.
Advantages of UEFI
Modularity: UEFI drivers and applications are portable and standardized.
Security: Features like Secure Boot help defend against boot-time malware.
Scalability: Supports advanced features like networking, remote management, and large-capacity drives.
User-Friendly Interfaces: Many UEFI implementations offer rich graphical configuration utilities.
Challenges and Criticisms
Despite its advancements, UEFI has faced some criticism:
Complexity: Its richer feature set adds complexity, making debugging harder.
Secure Boot Issues: While enhancing security, Secure Boot has been criticized for locking out alternative operating systems like Linux in some implementations.
Firmware Bugs: Poorly implemented UEFI firmware can lead to system instability.
Conclusion
UEFI represents a significant leap forward from legacy BIOS, offering modern capabilities, better security, and support for advanced hardware. By understanding its internals, developers, system administrators, and enthusiasts can better appreciate its potential and navigate its challenges. As hardware and software continue to evolve, UEFI remains an integral part of the modern computing landscape.
