The 4004 Microprocessor: History and Creators

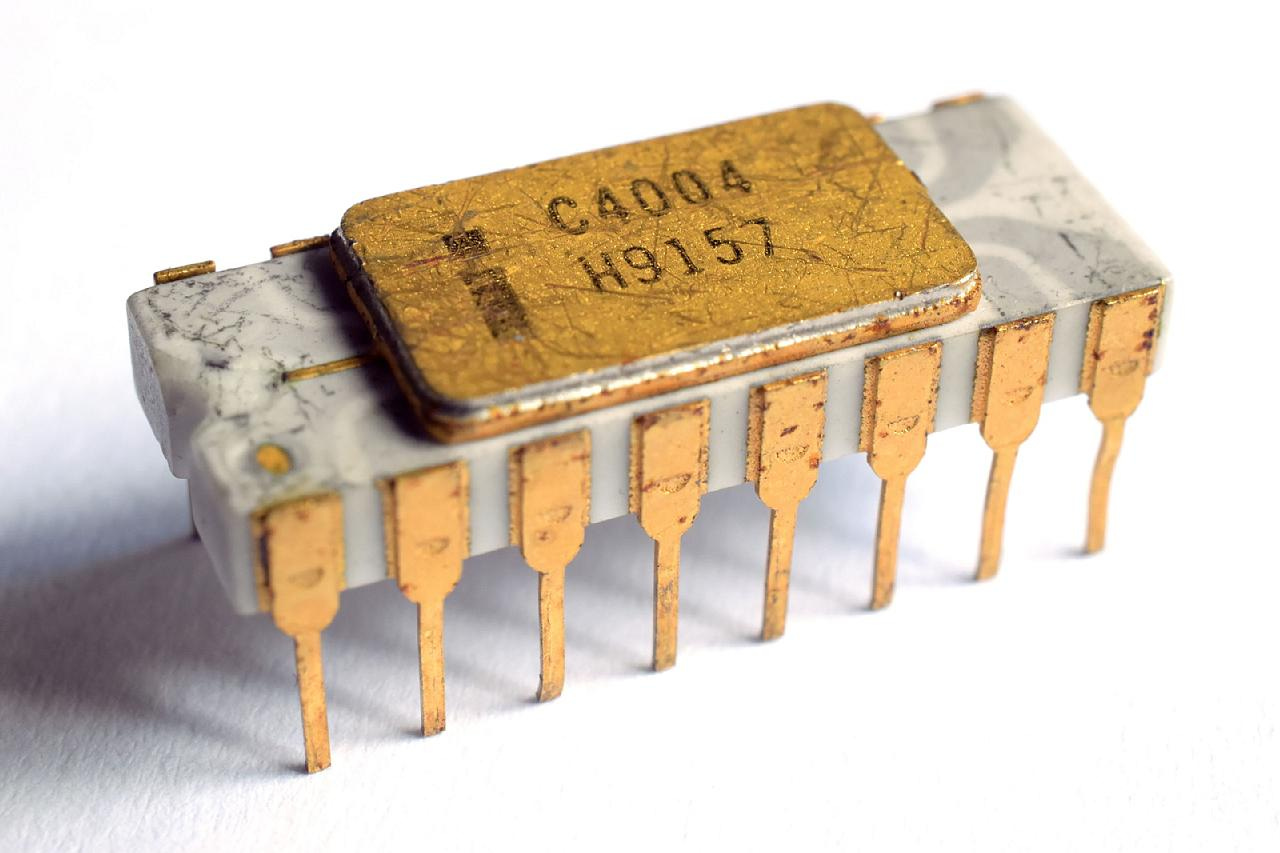

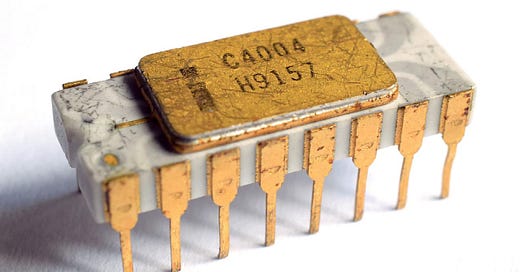

The Intel 4004 microprocessor, released in 1971, is widely recognized as the world's first commercially available microprocessor. This revolutionary piece of technology was a pivotal milestone in the history of computing, laying the foundation for the microprocessor-driven digital age that followed. It introduced the concept of integrating a central processing unit (CPU) onto a single chip, a breakthrough that would profoundly change the design and functionality of computers.
Historical Context
In the late 1960s and early 1970s, the computing world was dominated by large, expensive mainframes and minicomputers. These systems were built using discrete transistors or integrated circuits that implemented logic functions but lacked the flexibility of programmable systems. The demand for smaller, more versatile computing devices was growing, particularly in industries like business, engineering, and consumer electronics.
At the same time, the burgeoning semiconductor industry was pushing the boundaries of miniaturization and integration. The development of the metal-oxide-semiconductor (MOS) process allowed for greater transistor densities, paving the way for new applications and innovations.
The Birth of the 4004
The story of the Intel 4004 began with a Japanese company, Nippon Calculating Machine Corporation (later known as Busicom), which sought to develop a new line of programmable calculators. In 1969, Busicom contracted Intel, a relatively young semiconductor company, to design a set of integrated circuits for their calculator models.
Busicom's initial design called for a chipset consisting of 12 custom chips. However, Federico Faggin, an Italian-American physicist and engineer who had recently joined Intel, proposed a bold idea: replace the complex design with a simplified four-chip set, including a general-purpose CPU. This innovation not only reduced costs but also created a highly flexible architecture that could be adapted for other applications.
The final chipset included:
4004 CPU: The central processor capable of performing computations.
4001 ROM: A read-only memory chip for program storage.
4002 RAM: A random-access memory chip for temporary data storage.
4003 Shift Register: A chip used for input/output operations.
Key Creators
The development of the 4004 microprocessor was a collaborative effort, with contributions from several key individuals:
Federico Faggin
Known as the principal designer of the 4004, Faggin was instrumental in bringing the chip to life. He developed the silicon gate technology with self-aligned gates, a critical advancement that enabled the high integration of the microprocessor. Faggin also led the chip's architecture and physical design, ensuring its functionality and manufacturability.
Marcian "Ted" Hoff
Often credited with the original concept of the microprocessor, Hoff was Intel's first hire with a PhD in engineering. He proposed the idea of using a general-purpose processor instead of a fixed-function circuit for the Busicom project, laying the groundwork for the 4004's development.
Stanley Mazor
A member of Hoff's team, Mazor contributed to the architecture and instruction set of the 4004. His expertise in system design helped shape the chip's capabilities.
Masatoshi Shima
An engineer from Busicom, Shima collaborated closely with the Intel team and provided critical input on the microprocessor's design and operation.
Technical Specifications
The Intel 4004 was a 4-bit microprocessor, meaning it processed data in 4-bit chunks. Despite its modest capabilities by today's standards, the 4004 was a marvel of engineering at the time. Key specifications include:
Clock Speed: 740 kHz
Transistor Count: 2,300
Instruction Set: 46 instructions
Addressable Memory: 640 bytes of program memory and 32 bytes of data memory
Process Technology: 10-micron silicon gate PMOS
The 4004 could execute approximately 92,000 instructions per second, which was groundbreaking for its era.
Impact and Legacy
The introduction of the 4004 marked the beginning of the microprocessor revolution. Its programmable nature made it applicable to a wide range of uses beyond calculators, such as embedded systems, industrial controls, and eventually personal computers. The success of the 4004 inspired the development of more powerful microprocessors, including Intel's 8008 and 8080, which would become central to the first generation of microcomputers.
The 4004 also solidified Intel's position as a leader in the semiconductor industry. It demonstrated the potential of microprocessors as a transformative technology, influencing competitors to pursue similar innovations.
Conclusion
The Intel 4004 microprocessor was a groundbreaking achievement that changed the trajectory of technology. Thanks to the vision and ingenuity of Federico Faggin, Ted Hoff, Stanley Mazor, and Masatoshi Shima, this tiny chip ushered in a new era of computing. Today, the legacy of the 4004 lives on in the powerful microprocessors that drive modern computers, smartphones, and countless other devices. Its creation represents not just a technical triumph but also a testament to the power of collaboration and innovation.
