IPv4 and IPv6: Evolution, Key Differences, and the Engineers Behind the Protocols
Introduction
The Internet Protocol (IP) serves as the foundational communication system for the internet, dictating how data packets are addressed and transmitted across networks. The two primary versions in use today are IPv4 and IPv6, each with distinct characteristics, histories, and contributions from various engineers.
History of IPv4
IPv4, or Internet Protocol version 4, was introduced in 1981 as the first widely adopted version of IP. It utilizes a 32-bit addressing system, allowing for approximately 4.3 billion unique addresses. In the early stages of the internet, this vast address space seemed sufficient. However, the rapid expansion of the internet and the proliferation of connected devices soon highlighted the limitations of IPv4's address capacity. To mitigate address exhaustion, techniques such as Network Address Translation (NAT) and Classless Inter-Domain Routing (CIDR) were implemented, but these were temporary solutions.
Development of IPv6
Recognizing the impending exhaustion of IPv4 addresses, the Internet Engineering Task Force (IETF) initiated efforts in the early 1990s to develop a successor. This led to the creation of IPv6, which was formalized in 1995. IPv6 employs a 128-bit addressing system, exponentially increasing the address space to accommodate the growing number of internet-connected devices.
Key Engineers Behind IPv4 and IPv6
The development of IPv4 and IPv6 involved contributions from numerous engineers and researchers. Vint Cerf and Bob Kahn are often credited with the design of the Transmission Control Protocol (TCP) and IP, laying the groundwork for IPv4. Steve Deering played a significant role in the development of IPv6, particularly in its addressing architecture and multicast capabilities. Additionally, the IETF's IP Next Generation (IPng) working group, co-chaired by Scott Bradner and Allison Mankin, was instrumental in standardizing IPv6.
Differences Between IPv4 and IPv6
Address Space: The most notable difference is the size of the address space. IPv4's 32-bit system supports approximately 4.3 billion addresses, whereas IPv6's 128-bit system allows for 340 undecillion addresses, effectively eliminating concerns about address exhaustion.

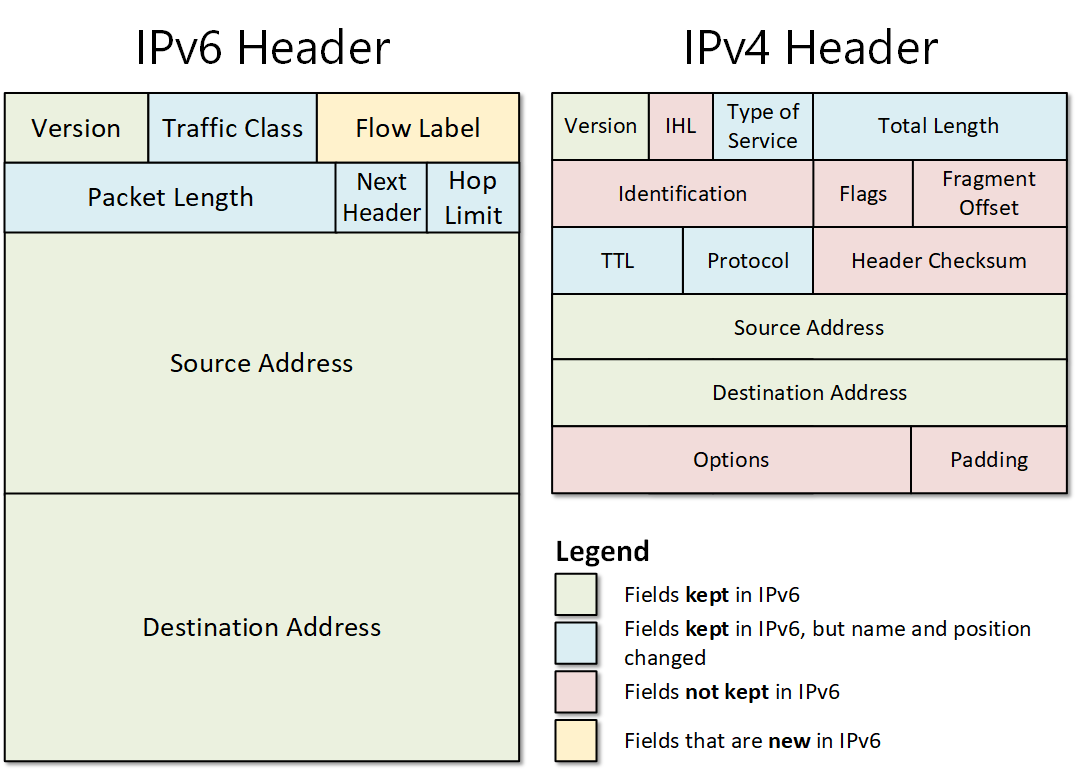

Header Simplicity: IPv6 features a simplified header structure compared to IPv4. Many rarely used fields have been moved to optional extensions, streamlining packet processing and improving routing efficiency.
Fragmentation Handling: In IPv4, both routers and sending hosts can fragment packets. In contrast, IPv6 handles fragmentation only at the sending host, with routers not performing fragmentation, which enhances routing efficiency.
Security Integration: IPv6 was designed with IPsec (Internet Protocol Security) as a fundamental component, providing confidentiality, integrity, and authenticity of data. While IPsec can be used with IPv4, it is optional and less uniformly implemented.
Address Configuration: IPv6 introduces stateless address autoconfiguration (SLAAC), allowing devices to self-configure an IP address without the need for a server. IPv4 typically relies on the Dynamic Host Configuration Protocol (DHCP) for address assignment.
Communication Methods: IPv4 supports unicast, broadcast, and multicast transmission methods. IPv6, however, eliminates broadcast addressing and introduces anycast addressing, where packets are delivered to the nearest of multiple possible destinations, enhancing routing efficiency.
Transition from IPv4 to IPv6
The transition from IPv4 to IPv6 is an ongoing process, given the vast infrastructure built around IPv4. Various transition mechanisms have been developed, including dual-stack implementation, where devices run both protocols simultaneously, and tunneling techniques that encapsulate IPv6 traffic within IPv4 networks. Despite these efforts, IPv6 adoption has been gradual, influenced by factors such as compatibility concerns and the extensive deployment of NAT in IPv4 networks.
Conclusion
IPv4 and IPv6 represent different generations of the Internet Protocol, each reflecting the technological needs and challenges of their times. While IPv4 laid the foundation for global internet connectivity, IPv6 addresses the limitations of its predecessor, offering a more robust and scalable framework for the future of digital communication.
References
"Internet Protocol," Wikipedia.
"IPv6," Wikipedia.
"The Evolution of the Internet: IPv4 to IPv6: A Historical Overview," C2SI.
"IPv4 vs. IPv6: What's the Difference?" Avast.
"Understanding IPv4 and IPv6 Protocol Families," Juniper Networks.
"A Comparative Review Of Internet Protocol Version 4 (IPv4) and Internet Protocol Version 6 (IPv6)," arXiv.
